Specification:

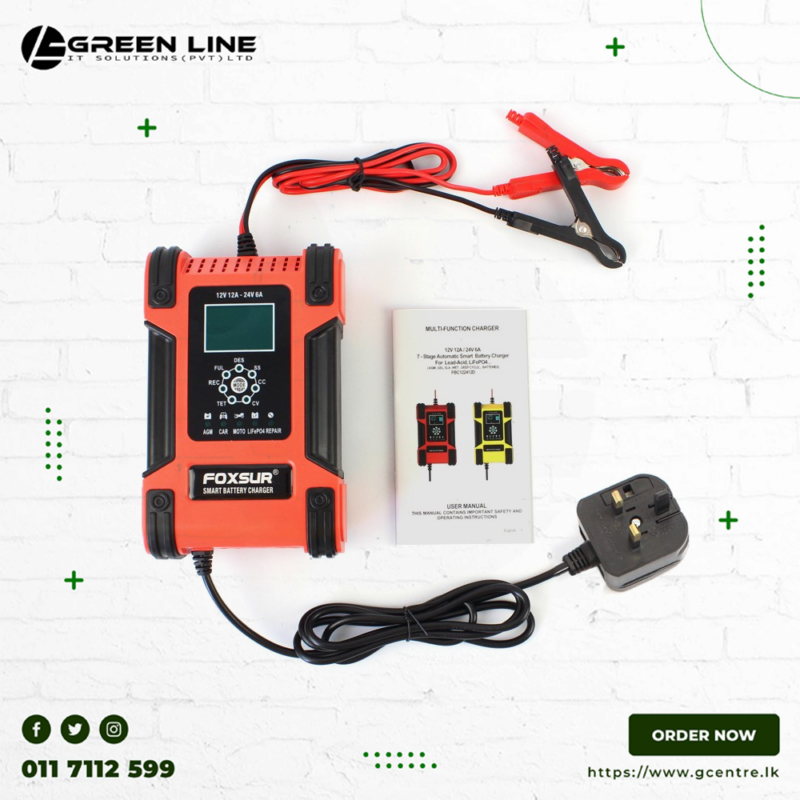

- Product name: 12V/24V motorcycle battery charger
- Product color: red
- Product size (L×W×H): 185x118x70mm
- Shell material: ABS
- Plug Specifications: European, American, British
- Switch Mode Technology: Yes
- Polarity Protection: Yes
- Output short circuit protection: yes
- Non-battery link protection: yes
- Overvoltage Protection: Yes
- Over temperature protection: yes
- Cooling method: built-in fan
- Input voltage: 100-240V AC, 50-60Hz
- Rated output: 12V 12A, 24V 6A
- Minimum startup voltage: 8.0V
- Battery Range: 6-200Ah
- Thermal Protection: 65’C+/-5’C
- Productivity: Apps. 85%.
- Compliant with standards: CE, IEC60335, EN61000, En55014
- Battery Type: Most types of lead-acid batteries, including calcium, gel AGM, LiFePo4, Wet, lead-acid, etc.
- Product net weight: 735g
packing list:
- 1*Car battery charger
- 1*Instruction
Notice:
- This product is suitable for dry batteries, water batteries, lead-acid maintenance-free batteries (lithium batteries can only be charged with iron lithium batteries, other lithium batteries are not applicable)
- The red clip is connected to the positive terminal of the battery.
- The black clip connects to the negative terminal of the battery.
Notice:
1. If the LED color cannot change from red to green, it means that the battery may be damaged, you should check whether the battery is damaged in advance
2. If the battery is not used for a long time or the electrolyte is insufficient, the voltage will be much lower, and it will be easily damaged, and the battery cannot be recharged.
3. This charger is suitable for battery capacity between 6AH to 200AH, please check the battery capacity (AH) before buying the charger! Thanks!
