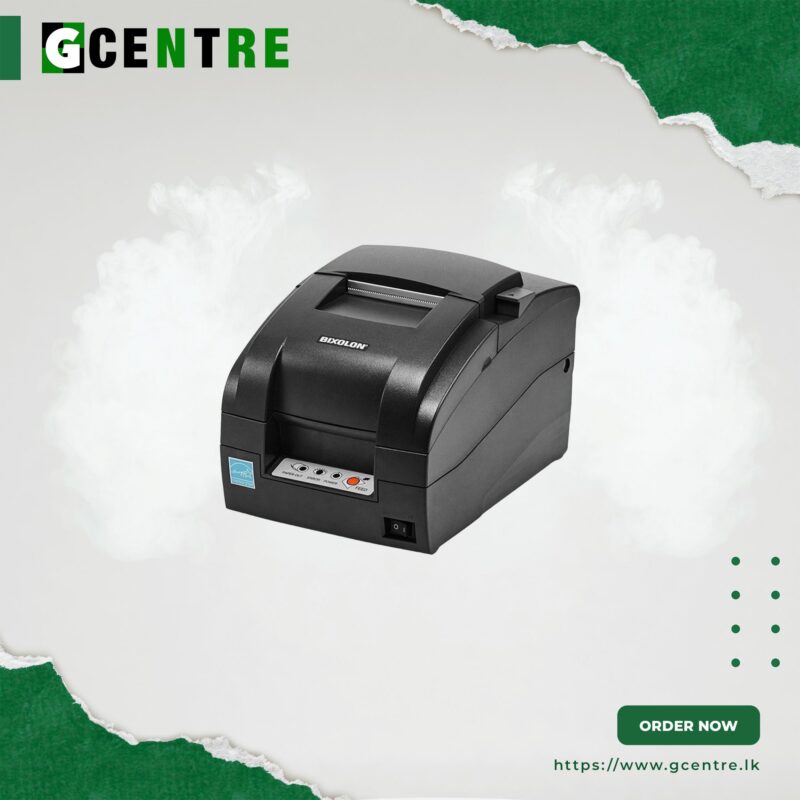

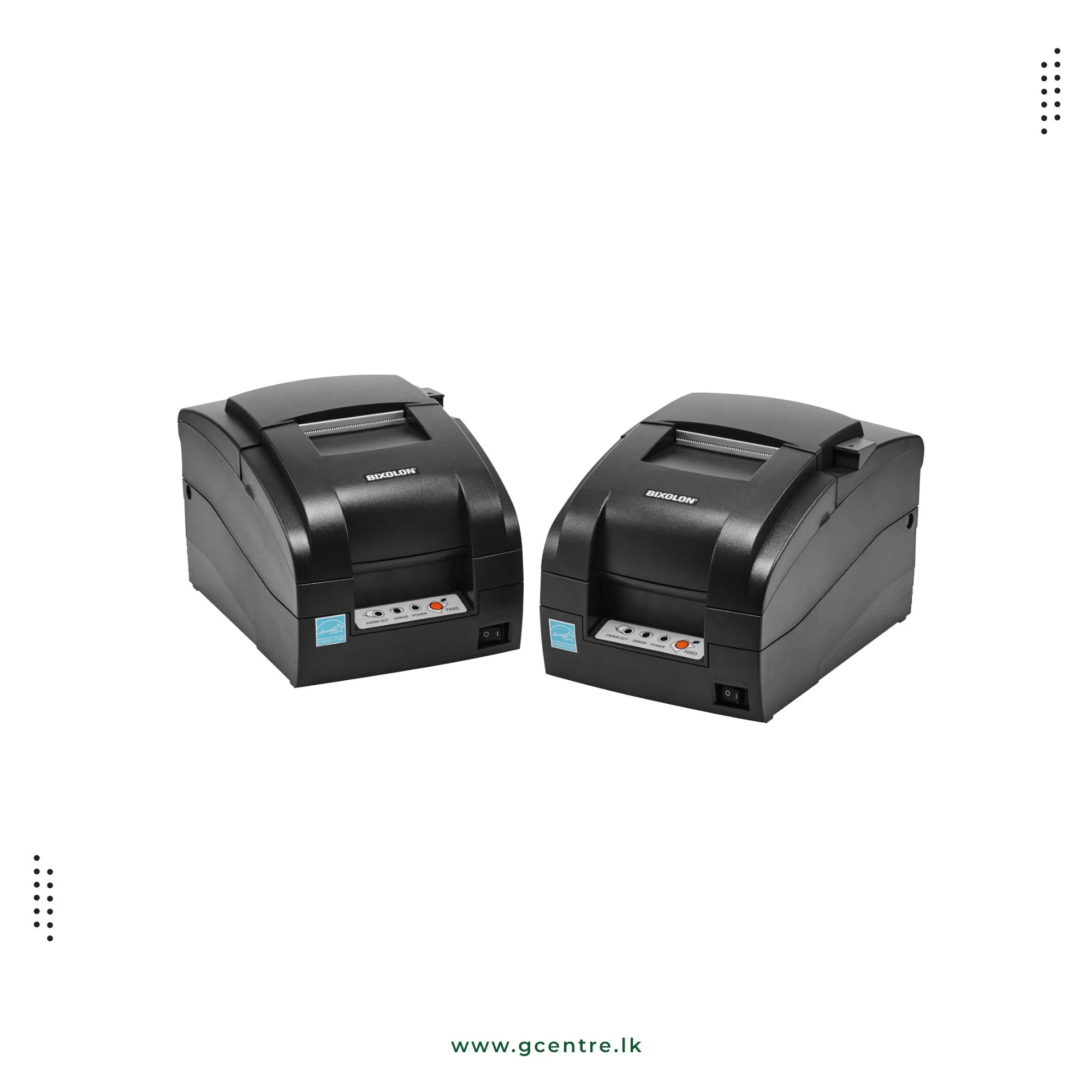

SRP-275III Dot Matrix Bill Printer

Print Characteristics
Print Method
9 Pin
Serial Dot Matrix
Print Speed
Up to 5.1 lps (at 40 colums)
Print Resolution
80 dpi (Horizontal)
144 dpi (Vertical)
Print Width
Up to 63.5 mm
Sensor
Paper End, Paper Near End, Wall Mounting Paper
Near End, Rear Cover Open, Black Mark
Media Characteristics
Media Type
Receipt
Media Width
76.5 mm
Media Roll Diameter
Up to 83 mm
Media Thickness
0.06 ~ 0.085 mm
Supply Method
Easy Paper Loading
Physical Characteristics
Dimensions (W x D x H)
160 x 239 x 157 mm
(6.29 x 9.40 x 6.18 inch)
Weight
A: 2.4 kg (5.29 lbs.)
C: 2.5 kg (5.51 lbs.)
Electrical
EnergyStar Certified,
External Power Supply Housed Internally
(Adaptor 24V/2.5A), 50/60Hz
Drawer Port
2 ports (via y-type adaptor)
Performance Characteristics
NV Image Memory
256 Kbytes (mono)
Receive Buffer
64 Kbytes
User Define Buffer
64 Kbytes
Interface
① USB V2.0 FS + Serial + Ethernet*
② USB V2.0 FS + Parallel
③ USB V2.0 FS + Serial
* DHCP enabled
Environment Characteristics
Temperature
Operating: 0 ~ 40℃ (32 ~ 104℉)
Storage: -20 ~ 60℃ (-4 ~ 140℉)
Humidity
Operating: 10 ~ 80% RH
Storage: 10 ~ 90% RH
Reliability
Thermal Print Head (TPH)
300 Million Dots/Wire
Auto Cutter
1.5 Million Cuts
Software
Emulation
BXL / POS
Driver / Utility
Windows Driver, OPOS / JPOS Driver,
Linux / Mac CUPS Driver,
Virtual COM USB / Ethernet Driver,
Utility Program
SDK / Plugin
Android / iOS / Windows SDK, Linux SDK,
Chrome SDK
Application
mPrint Server (Windows, iOS)
MDM
BIXOLON Profile Manager
– XPM™, XCM™ (Windows, Android)
Fonts / Graphics / Symbologies
Character Size
Font A: 9 x 9 Font B: 7 x 9 KOR: 17 x 9 CHN: 16 x 16
Characters Per Line
Font A: 35 Font B: 40 KOR: 20 CHN: 22
Character Sets
Alphanumeric: 95
Extended Graphics:128 x 27 page
International: 48
Graphics
Supporting user-defined fonts, graphics,
formats, and logos
Accessories
Optional
Wall Mount, Splash Proof Cover,
Ribbon Cartridge,B-Melodist, External Buzzer,
USB A-B Cable 1.8m
