| Light Source | LED White light |
| Aiming Light | Green Dot |
| Image sensor | 1280*800 pixels |
| CPU | 1.2G Dual-core |
| Resolution’maximum’ | 4mils |
| Motion Tolerance | 2M/S |
| Print contrast ratio’minimum’ | 20% Reflection Difference |
| Reading Angle | Pitch: 0-360°; Roll’Tilt’: ±60°; Skew ‘Yaw’: ±60° |
| Decoding Capability | 1D: All standard 1D codes, including GS1 DataBar™ linear code can be automatically distinguished and decoded.
2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417. |
| Reading Indicators | LED light&Buzzer’adjustable tone and volume） |
| Typical depth of Field | 3.34mil CODE 39 60mm—160mm
3.34mil EAN-13 90mm—150mm 5mil CODE39 70mm—240mm 5mil EAN-13 70mm—230mm 13mil UPC-A 40mm—450mm 5mil PDF417 65mm—210mm 5mil QR 75mm—140mm 10mil QR 45mm—290mm 10mil DM 30mm—260mm 20mil QR 20mm—480mm ‘The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.’ |
| Electrical Parameter | |
| Current | Working current（Standard’: 280 mA Standby current（Standard’: 130 mA |
| Input Voltage | 5 VDC ‘+/- 10%’/500mA |
| Environmental Parameter | |
| ESD protection’Air discharge’ | 8 kV |
| Drop resistance | Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface. |
| Temperature | Working: 0 to 40 °C; Storage/Transport: -40 to 70 °C |
| Humidity’non-condensing’ | 5 – 95% |
| Ambient light | Indoor: 0 to 6,000 lux; Outdoor: 0 to 86,000 lux |
| Cordless Parameter | |
| 2.4 Transmission distance | Open space 50 meters |
| Bluetooth connection | 15m transmission distance’basic on open space’ |
| Communication mode | Wireless real-time transmission/wired transmission/storage mode |
| Battery capacity | 1500mAh |
| Continuous working time | Full power can read over 8W commodity barcodes |
| Charging time | 3H |

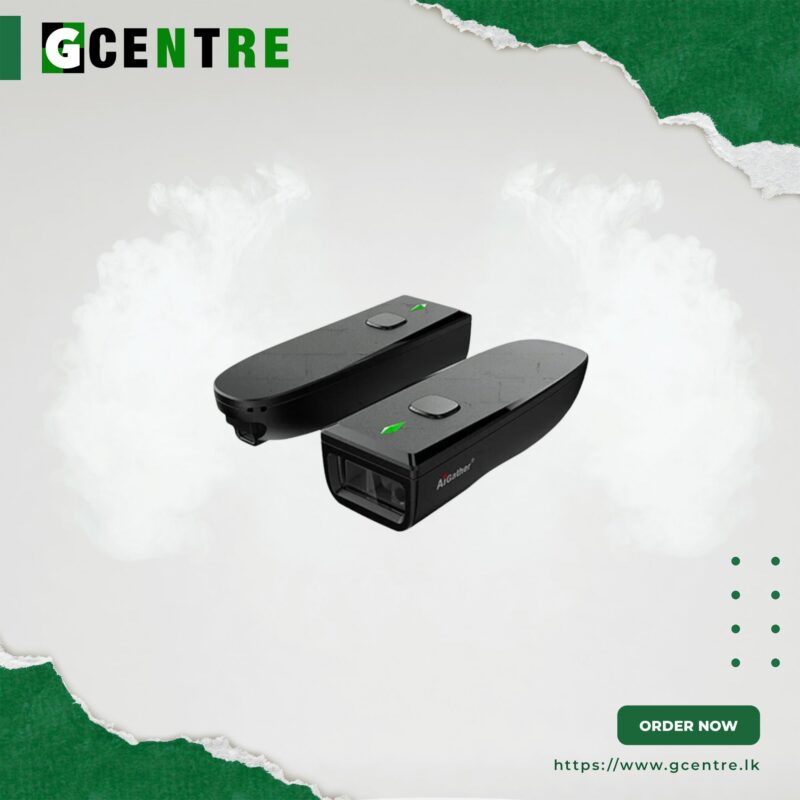

AM2SR POCKET 2D BARCODE SCANNER
Rs.32,850.00
- Aigather A-M2-Sr Pocket 2D Barcode Scanner
- Aiming Light Green Dot
- LED White light
Pay in 3 months
Starting from Rs.10,950.00
Pay in 6 months
Starting from Rs.5,475.00
Pay in 12 months
Starting from Rs.2,737.50
Pay in 24 months
Starting from Rs.1,368.75
Island wide delivery within 2 days. Buy GCENTER products with confidence.
Split it into 3 payments of Rs..12,045.00
