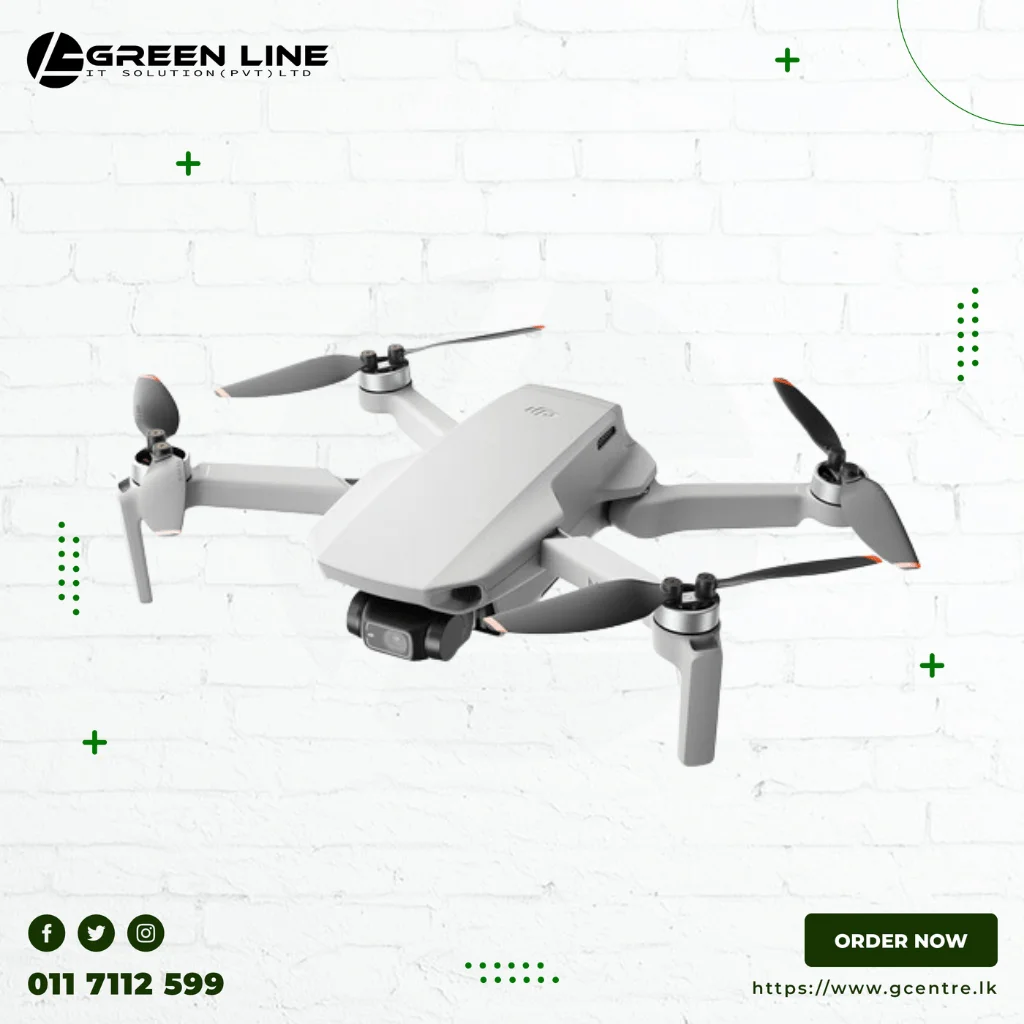

DJI Mini 2

GNSS Support

GPS, GLONASS, Galileo

Operating Frequency

2.4 GHz (2.400 – 2.483)
5.8 GHz (5.725 – 5.850)

Maximum Operating Distance

6.2 Miles / 10 km

Transmitter Power

26 dBm (2.4 G)
26 dBm (5.8 G)

Connectivity

1 x USB Type-C
1 x Micro-USB
1 x Lightning

Battery Capacity

5200 mAh

Mobile Device Compatibility

Android
iOS

Operating Temperature

50 to 104°F / 10 to 40°C

Sensor

1/2.3″ CMOS

Effective Pixels

12 MP

Lens Field of View

83°

Aperture

f/2.8

Minimum Focusing Distance

3.3′ / 1.0 m

Photo ISO Range

100 to 3200 (Auto)
100 to 3200 (Manual)

Video ISO Range

100 to 3200 (Auto)
100 to 3200 (Manual)

Electronic Shutter Speed

4 to 1/8000 Second

Photo Resolution

4:3: 4000 x 3000
16:9: 4000 x 2250

Photo Format

JPEG, DNG

Video Format

3840 x 2160p at 24/25/30 fps (100 Mb/s H.264/AVC, MPEG-4)
2720 x 1530p at 24/25/30 fps (100 Mb/s H.264/AVC, MPEG-4)
1920 x 1080p at 24/25/30/48/50/60 fps (100 Mb/s H.264/AVC, MPEG-4)

Battery Chemistry

Lithium-Ion Polymer (LiPo)

Capacity

2250 mAh / 17.32 Wh

Battery Configuration

2 S / 7.7 V

Maximum Charging Power

29 W

Charging Temperature

41 to 104°F / 5 to 40°C

Weight

3.0 oz / 86.2 g

AC Input Power

100 to 240 VAC, 50 / 60 Hz at 0.5 A

Output Voltage

12 V, 1.5 A
9 V, 2 A
5 V, 3 A

Power Rating

18 W

Number of Rotors

4

Operating Temperature

32 to 104°F / 0 to 40°C

Overall Dimensions

5.4 x 3.2 x 2.3″ / 138.0 x 81.0 x 58.0 mm (Folded)
9.6 x 11.4 x 2.2″ / 245.0 x 289.0 x 56.0 mm (Unfolded)

Weight

8.8 oz / 249 g

Operating Frequency

2.4 GHz (2.400 – 2.483)
5.8 GHz (5.725 – 5.850)

Operating Temperature

50 to 104°F / 10 to 40°C

Weight

8.8 oz / 249 g

Maximum Charging Power

29 W

Operating Temperature

32 to 104°F / 0 to 40°C

Maximum Takeoff Weight

8.8 oz / 249 g

Maximum Horizontal Speed

36 mph / 16.1 m/s

Maximum Ascent Speed

11.2 mph / 5 m/s

Maximum Descent Speed

7.8 mph / 3.5 m/s

Maximum Wind Resistance

24 mph / 10.7 m/s

Flight Ceiling

2.5 Miles / 4000 m

Maximum Flight Time

31 Minutes

Maximum Tilt Angle

40°

Hovering Accuracy

±1.0′ / 0.3 m Horizontal with Vision Positioning
±0.3′ / 0.1 m Vertical with Vision Positioning
±4.9′ / 1.5 m Horizontal with GPS
±1.6′ / 0.5 m Vertical with GPS

Effective Pixels

12 MP

Lens Field of View

83°

Photo Resolution

4:3: 4000 x 3000
16:9: 4000 x 2250

Photo Format

JPEG, DNG

Video Format

3840 x 2160p at 24/25/30 fps (100 Mb/s H.264/AVC, MPEG-4)
2720 x 1530p at 24/25/30 fps (100 Mb/s H.264/AVC, MPEG-4)
1920 x 1080p at 24/25/30/48/50/60 fps (100 Mb/s H.264/AVC, MPEG-4)

Weight

8.8 oz / 249 g

Dimensions (LxWxH)

7.3 x 5.7 x 5.5″

Package Weight

2.42 lb

Dimensions (LxWxH)

7.3 x 5.7 x 5.5″
