GENERAL

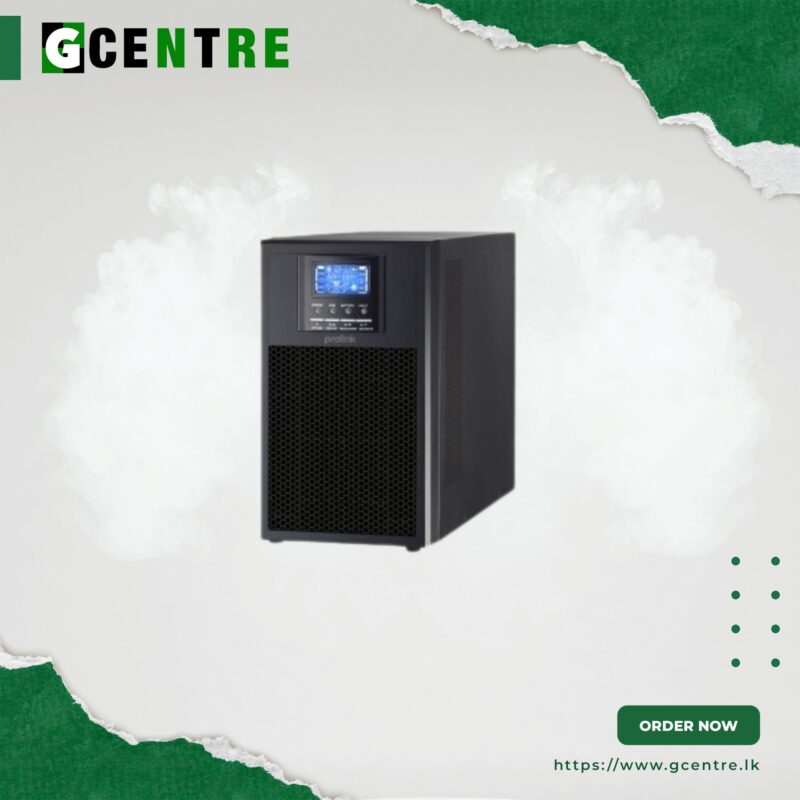

UPS Type-Tower
Phase-Single phase with ground
Rating (VA)-1000
Nominal Power (W)-900
Standard Model Dimension (mm)-282 x 145 x 220 (D x W x H)
Weight (kg) 9.8
Long-run Model Dimension (mm)-282 x 145 x 220 (D x W x H)
Weight (kg)-4.1
INPUT
Connection Type-IEC 320-C14
Nominal Voltage-200/208/220/230/240 VAC
Voltage Range-110-300 VAC (Load at 50%) 160-280 VAC (Load at 100%)
Frequency Range-45 ~ 70 Hz
Power Factor->= 0.99
OUTPUT
Connection Type-3 x Universal socket (PRO901ES),2 x Universal socket (PRO901EL)
Nominal Voltage-200/208/220/230/240 VAC
Voltage Regulation-±1%
Frequency Range (Synchronized Range)-47 ~ 53 Hz or 57 ~ 63 Hz
Frequency Range (Batt. Mode)-50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz
Current Crest Ratio-3:1
Harmonic Distortion-≤3% THD (Linear load) ≤6% THD (Non-linear load)
ALARM & INDICATORS
Battery Mode-Sounding every 4 seconds
Low Battery-Sounding every second
Overload-Sounding twice every second
Fault-Continuously sounding
LCD-Load level, Battery Level, AC mode, Battery mode, Bypass mode and Fault
CONNECTIVITY, CONTROL & MONITORING
Front panel-Status LED, Function keys, LCD display
Communication-Smart RS232* USB Port
BATTERY
Standard Model Type-12V / 9Ah
Numbers-2
Typical Recharge Time-4 hours recover to 90% capacity
Long run Model Type-Depending on the capacity of external batteries
Number-3
Charging Current(max)-1A / 2A / 4A / 6A Adjustable
REAR PANEL
-AC Input
-Input circuit breaker
-USB Communication port
-RS-232 communication port
-Intelligent slot
-External battery connection (Only available for L model)
-Output receptacles
