| Interface | One 10/100M Ethernet Port’RJ45′ Support Passive PoE |
|---|---|
| Button | WPS/Reset, Power On/Off |
| Power Consumption | 5.8W |
| External Power Supply | 12VDC/1A |
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Dimensions ‘ W x D x H ‘ | 7.67*5.12*1.43 in.’ 194.82*129.93*36.2mm’ |
| Antenna Type | 3*5dBi Detachable Omni Directional ‘RP-SMA’ |
| WIRELESS FEATURES | |
|---|---|
| Frequency | 2.4-2.4835GHz |
| Signal Rate | 11n: Up to 450Mbps’dynamic’ 11g: Up to 54Mbps’dynamic’ 11b: Up to 11Mbps’dynamic’ |
| Reception Sensitivity | 270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER |
| Transmit Power | <20dBm’EIRP’ |
| Wireless Modes | Access Point /Repeater ‘Range Extender’/ Bridge with AP/ Client/Multi-SSID/ |
| Wireless Functions | Enable/Disable Wireless Radio; WMM ‘Wi-Fi Multimedia’ Wireless MAC Address Filtering Wireless Statistic Domain Login Function |
| Wireless Security | 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK |
| DHCP | DHCP Server |
| Quality of Service | WMM |
| Management | SNMP |
| Advanced Functions | Up to 30 meters PoE is supported |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |

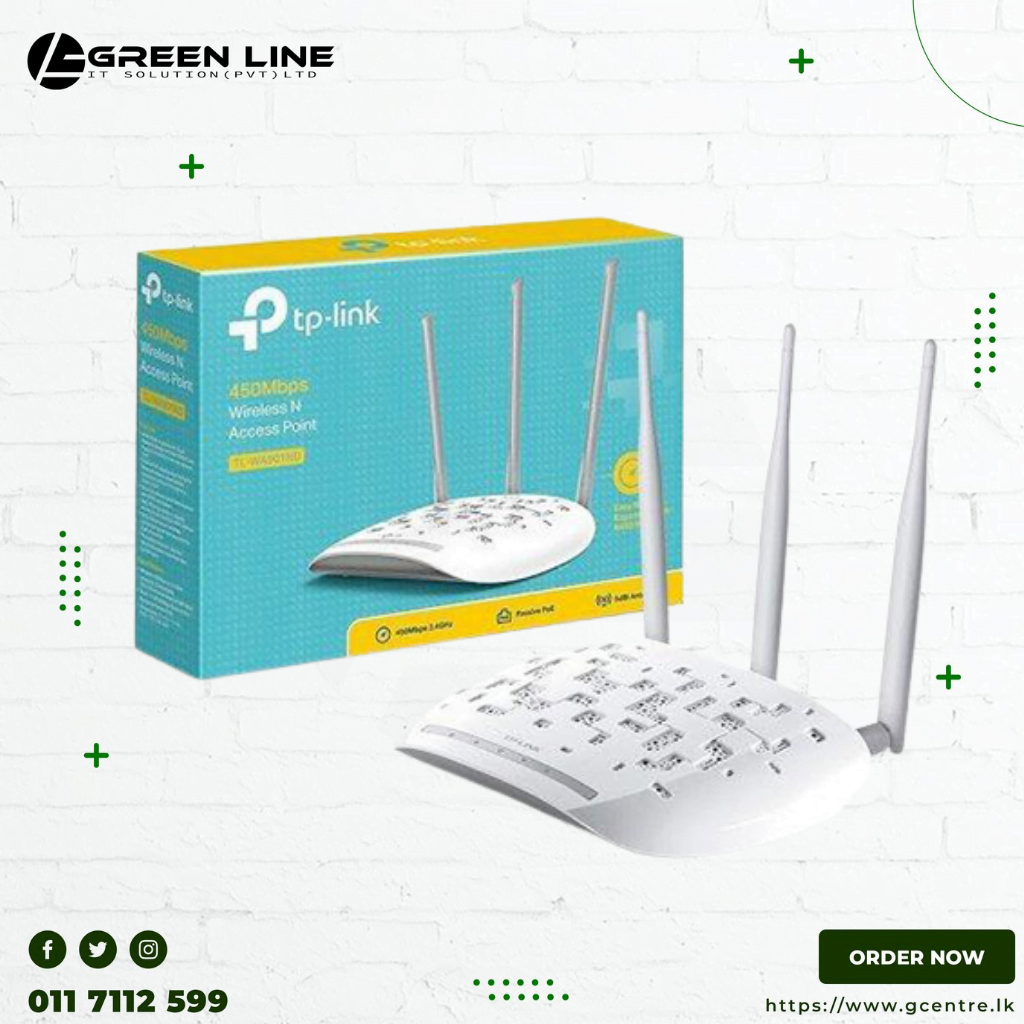

| Package Contents | Wireless Access Point TL-WA901ND 3 Detachable Omni Directional Antennas Power Supply Unit PoE Power Injector Resource CD Quick Installation Guide RJ-45 Ethernet Cable |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, 8, 10 |
| Environment | Operating Temperature: 0℃~40℃ ’32℉~104℉’ Storage Temperature: -40℃~70℃ ‘-40℉~158℉’ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
